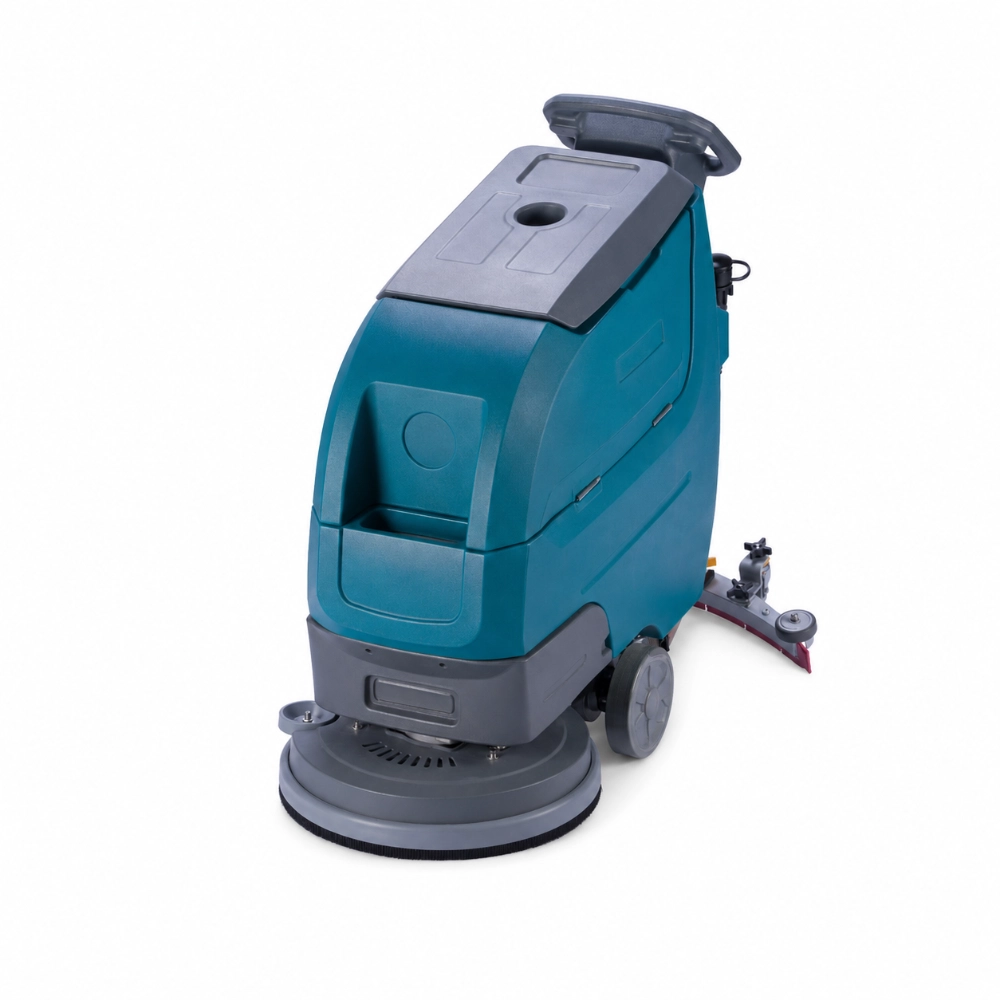

ZY-D3Z self-propelled walk-behind floor scrubber top front oblique view, commercial industrial floor cleaning machine showing brush assembly and squeegee system

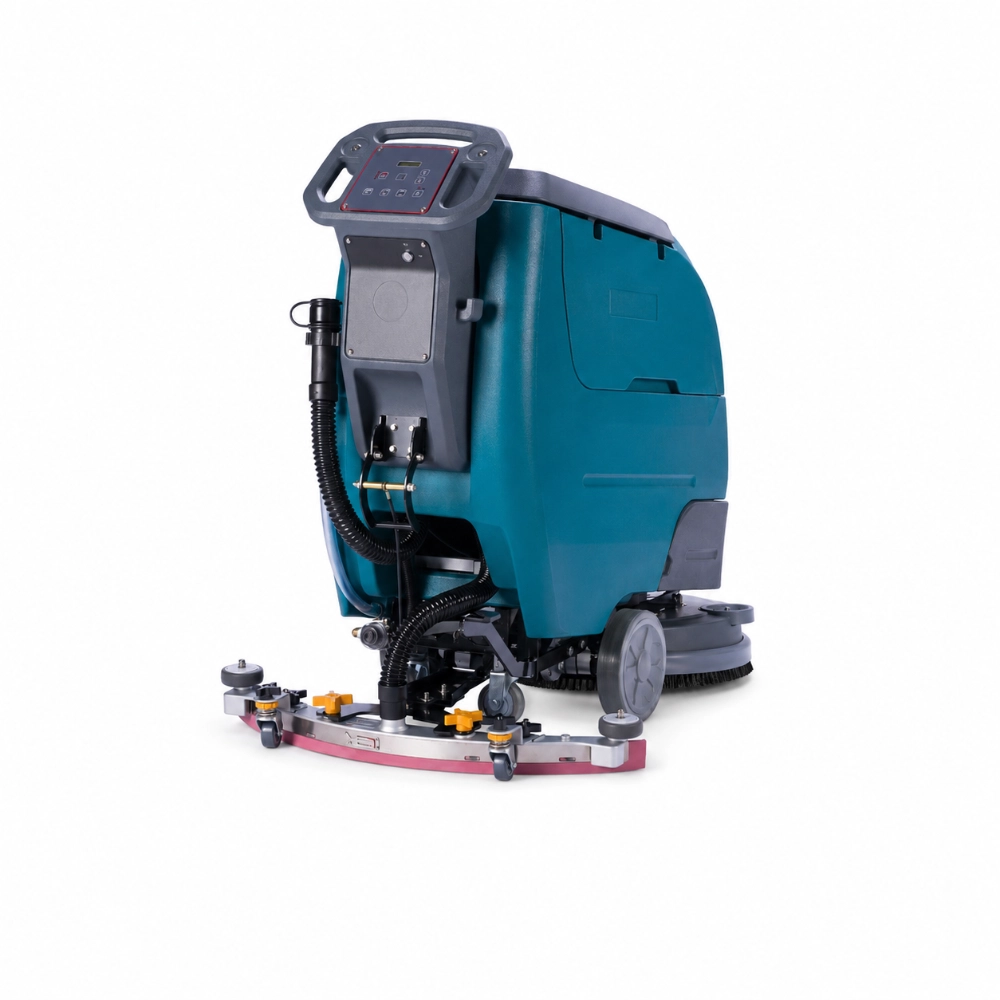

ZY-D3Z self-propelled walk-behind floor scrubber rear view showing control panel, handle, and high-efficiency squeegee system for commercial industrial cleaning

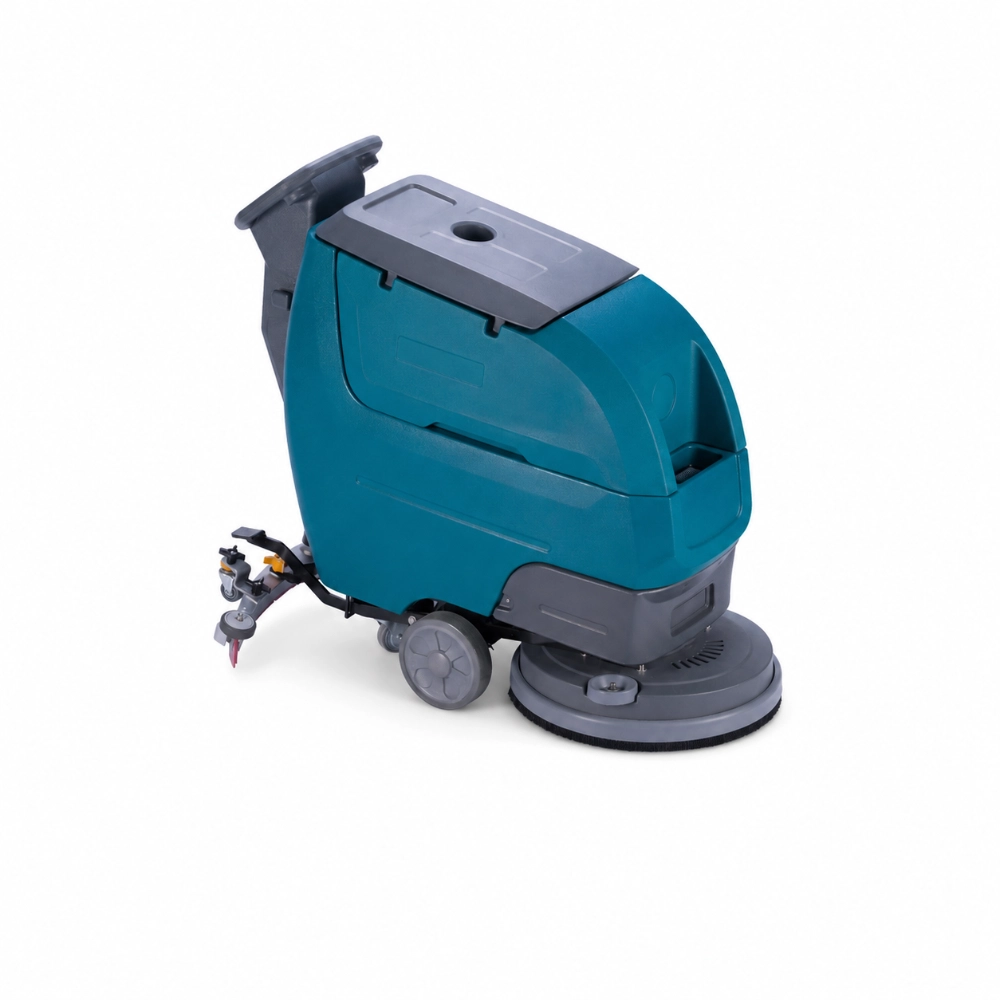

ZY-D3Z self-propelled walk-behind floor scrubber top rear oblique view, showing tank cover, handle, cleaning brush, and squeegee system for commercial and industrial use

ZY-D3Z Self-Propelled Walk-Behind Floor Scrubber | Commercial & Industrial Hard Floor Cleaning Machine

ZY-D3Z Self-Propelled Walk-Behind Floor Scrubber Technical Specifications

Parameter Category	Specification Item	Details
Basic Product Info	Model	ZY-D3Z
Basic Product Info	Product Type	Self-Propelled Walk-Behind Floor Scrubber
Size & Weight	Overall Size	1260 × 550 × 1050 mm
	Net Weight	150 kg
	Gross Weight	170 kg
Electrical & Power System	Rated Voltage	24 V
	Total Power	1300 W
	Brush Motor Power	550 W
	Vacuum Motor Power	450 W
	Drive Motor Power	300 W
Cleaning Performance	Cleaning Width	510 mm
	Cleaning Efficiency	2200 m²/h
	Squeegee Width	820 mm
	Water Flow Rate	3.0 L/min
	Brush Pressure	28 kg
	Turning Radius	600 mm
Tank & Battery Endurance	Solution Tank Capacity	50 L
	Recovery Tank Capacity	60 L
	Battery Configuration	2 × DC12V, 100Ah / 3HR
	Charging Time	6–8 h
	Continuous Working Time	Approx. 3 h
Operation & Adaptability	Travel Speed	0–5.0 km/h
	Climbing Ability	<15%
	Noise Level	68 dB
	Drive Type	Power-Assisted Rear-Wheel Self-Propelled Drive
Application Scenarios	Suitable Places	Hospitals, Factories, Logistics Centers, Supermarkets, Hotels, High-Speed Railway Stations, Airports
Application Scenarios	Suitable Floor Types	Epoxy, Cement, Marble, Polished Tile, Concrete, Terrazzo

R&D Team
After-Sales Service Team
Global Delivery

Product Category

Description

ZY-D3Z self-propelled walk-behind floor scrubber overview infographic, featuring self-propelled drive, 2200 m²/h cleaning efficiency, 510mm scrubbing width, and 24V battery system for commercial and industrial use

ZY-D3Z self-propelled walk-behind floor scrubber commercial industrial hard floor cleaning machine with 2200㎡/h high efficiency

ZY-D3Z self-propelled floor scrubber low noise 68dB silent cleaning machine with horizontal silent vacuum motor for hotel hospital

ZY-D3Z walk-behind floor scrubber low-noise features infographic, 68dB ultra-quiet operation, silent vacuum motor, 820mm squeegee for hospitals, hotels, supermarkets

ZY-D3Z walk-behind floor scrubber controls infographic, push-button control panel, automatic fault detection, ergonomic handle design for easy operation

ZY-D3Z self-propelled walk-behind floor scrubber with push-button control panel, automatic fault detection, ergonomic handle for commercial cleaning

ZY-D3Z self-propelled floor scrubber dual water inlet design, 50L solution tank 60L recovery tank, easy daily maintenance commercial cleaning machine

ZY-D3Z walk-behind floor scrubber maintenance infographic, dual water inlets, large-opening recovery tank, 50L solution tank, 60L recovery tank for convenient daily use

ZY-D3Z walk-behind floor scrubber rear drive infographic, 300W drive motor, 0-5.0 km/h travel speed, climbing ability

ZY-D3Z walk-behind floor scrubber power-assisted rear drive system, 300W drive motor, 15% climbing capacity self-propelled commercial cleaning machine

ZY-D3Z self-propelled walk behind floor scrubber full technical specification sheet, commercial industrial floor cleaning machine for factory hotel supermarket airport

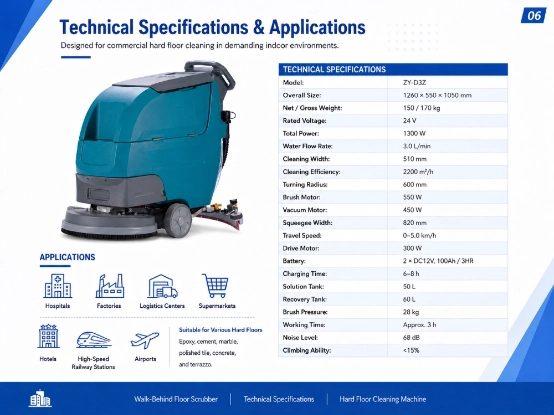

ZY-D3Z walk-behind floor scrubber technical specifications sheet, 2200 m²/h efficiency, 510mm cleaning width, 24V battery, applications for hospitals, factories, logistics centers, supermarkets

Zoyon industrial washing tricycle global compliance certificates, EMC LVD MSDS Korea EMC UN38.3 battery test reports

Commercial floor cleaning machine full international compliance certificates, EMC LVD certificate, MSDS safety sheet, UN38.3 battery test report for walk-behind floor scrubber, industrial sweeper, floor sweeper

Zoyon Clean large modern manufacturing factory workshop aerial view, professional manufacturer of walk-behind floor scrubber, industrial floor sweeper, commercial floor cleaning machine

Zoyon Cleaner factory panorama, large production workshop base for ZY-W1 industrial washing tricycle manufacturer

Zoyon ZY-W1 washing tricycle finished goods loading, forklift packing wooden crates into shipping container

Factory shipping loading process of industrial floor scrubber and floor sweeper machines, forklift packing wooden crates into shipping containers for export

Frequently Asked Questions

Q
What kind of places are your cleaning machines suitable for?

A
Our industrial floor scrubbers, ride-on sweepers and fog cannon dust suppression machines are widely used in factories, warehouses, logistics centers, supermarkets, hospitals, schools, shopping malls, parking lots and industrial parks.
Q
Are your machines CE certified and ISO qualified?

A
Yes, all our cleaning equipment has passed CE, ISO9001 and relevant qualification certifications, which fully meets European and global market import standards.
Q
Do you support OEM / ODM customization?

A
We provide professional OEM and ODM service. We can customize logo, color, function configuration and appearance according to your requirements.
Q
Are you a factory or trading company?

A
We are a professional manufacturer with independent R&D, production and sales team, factory direct price and reliable quality.
Q
What is the warranty period of your machines?

A
We provide 1 year whole machine warranty and lifelong technical support. Core spare parts can be supplied at factory cost price.
Q
Do you provide spare parts after sales?

A
Yes. We can provide all original spare parts such as batteries, motors, brushes, suction fans and filters at any time.
Q
How about the delivery time?

A
For standard models, delivery is about 7-15 working days. For customized orders, we will confirm the production cycle in advance.
Q
Can you send samples or accept small trial orders?

A
We support small trial orders. Due to large machine volume, we usually deliver full container or LCL goods instead of free samples.
Q
Is the machine easy to operate and maintain?

A
Our machines are designed with simple operation panel, one-key start and automatic working mode. Daily maintenance is simple and labor-saving.
Q
Do you provide operation manual and video?

A
Yes, we will provide English user manual, operation video and maintenance guide for every machine.
